1. 背景介绍
对H200进行MIG拆卡，拆分为1张2g35gb，5张1g18gb，拆卡已经通过Kubernetes MIG Manager实现。在节点上使用nvidia-smi -L查看，如下：
$ nvidia-smi -L
GPU 0: NVIDIA H200 (UUID: GPU-b2acda36-db78-a209-f9ef-d07b4336c449)
MIG 2g.35gb Device 0: (UUID: MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df)
MIG 1g.18gb Device 1: (UUID: MIG-be041b89-b751-5c96-84aa-85315833c669)
MIG 1g.18gb Device 2: (UUID: MIG-605bf89c-7be6-586e-a729-a2369e833b3e)
MIG 1g.18gb Device 3: (UUID: MIG-02b4e55e-29a1-5d28-b9ee-8e9445e355f0)
MIG 1g.18gb Device 4: (UUID: MIG-dc7ad5d3-20d8-5dcb-adf7-fb22c2459352)
MIG 1g.18gb Device 5: (UUID: MIG-148a1759-0dd2-59c6-9605-26206ae0e79b)
GPU 1: NVIDIA H200 (UUID: GPU-af5e38ec-d1d6-1c20-67c8-c8001109e6d8)
GPU 2: NVIDIA H200 (UUID: GPU-da9f3cba-5f87-5830-26d6-b3f5a545ae34)
GPU 3: NVIDIA H200 (UUID: GPU-f2c60745-001d-1948-52bb-c9616b34da97)
GPU 4: NVIDIA H200 (UUID: GPU-7b8f55d1-e1d9-30a2-590b-3eff9b86ae05)
GPU 5: NVIDIA H200 (UUID: GPU-a73089ba-c8f9-f9dc-bd1e-9da99cb2104b)
GPU 6: NVIDIA H200 (UUID: GPU-4e19f7d9-e5d6-1223-e9d2-983f01ef45f6)
GPU 7: NVIDIA H200 (UUID: GPU-5b73e21c-9b5d-4156-8b8d-aed96f9f8d86)
2. 解决方案
参考官方文档：https://docs.nvidia.com/datacenter/cloud-native/container-toolkit/latest/docker-specialized.html
2.1 使用镜像
这里使用到了公司测试环境的内网镜像：aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128
如果需要使用公网镜像，那么可以使用nvidia官方提供的镜像：nvidia/cuda
2.2 指定runtime
首先需要保证docker的runtime配置为nvidia：
$ cat /etc/docker/daemon.json
{
"bip":"192.168.99.1/16",
"exec-opts": ["native.cgroupdriver=cgroupfs"],
"default-runtime":"nvidia",
"runtimes": {
"nvidia": {
"path": "/usr/bin/nvidia-container-runtime",
"runtimeArgs": []
}
},
"data-root": "/home/docker/data",
"insecure-registries": ["harbor.maip.io","aiharbor.msxf.local"],
"experimental": true,
"live-restore": true
}
如果没有配置default-runtime为nvidia，那么在docker执行命令中需要增加指定runtime的参数，例如：
docker run --rm --runtime=nvidia -e NVIDIA_VISIBLE_DEVICES=2,3 aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi
2.3 指定使用MIG子卡
2.3.1 通过docker device指定子卡
指定子卡执行docker镜像。可以通过子卡的UUID或者索引号来指定。
2.3.1.1 通过指定UUID
docker run --rm --gpus device=MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi
执行后，终端输出：
Mon Jul 28 01:58:33 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.15 Driver Version: 570.86.15 CUDA Version: 12.8 |
|-----------------------------------------+------------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+========================+======================|
| 0 NVIDIA H200 Off | 00000000:2A:00.0 Off | On |
| N/A 30C P0 76W / 700W | N/A | N/A Default |
| | | Enabled |
+-----------------------------------------+------------------------+----------------------+
+-----------------------------------------------------------------------------------------+
| MIG devices: |
+------------------+----------------------------------+-----------+-----------------------+
| GPU GI CI MIG | Memory-Usage | Vol| Shared |
| ID ID Dev | BAR1-Usage | SM Unc| CE ENC DEC OFA JPG |
| | | ECC| |
|==================+==================================+===========+=======================|
| 0 5 0 0 | 29MiB / 33280MiB | 32 0 | 2 0 2 0 2 |
| | 0MiB / 65535MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
+-----------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=========================================================================================|
| No running processes found |
+-----------------------------------------------------------------------------------------+
2.3.1.2 通过指定子卡索引
注意这里指定的子卡索引:
docker run --rm --gpus '"device=0:0,0:1"' aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi
执行后，终端输出：
Mon Jul 28 02:00:04 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.15 Driver Version: 570.86.15 CUDA Version: 12.8 |
|-----------------------------------------+------------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+========================+======================|
| 0 NVIDIA H200 Off | 00000000:2A:00.0 Off | On |
| N/A 31C P0 76W / 700W | N/A | N/A Default |
| | | Enabled |
+-----------------------------------------+------------------------+----------------------+
+-----------------------------------------------------------------------------------------+
| MIG devices: |
+------------------+----------------------------------+-----------+-----------------------+
| GPU GI CI MIG | Memory-Usage | Vol| Shared |
| ID ID Dev | BAR1-Usage | SM Unc| CE ENC DEC OFA JPG |
| | | ECC| |
|==================+==================================+===========+=======================|
| 0 5 0 0 | 29MiB / 33280MiB | 32 0 | 2 0 2 0 2 |
| | 0MiB / 65535MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
| 0 7 0 1 | 15MiB / 16384MiB | 16 0 | 1 0 1 0 1 |
| | 0MiB / 32767MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
+-----------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=========================================================================================|
| No running processes found |
+-----------------------------------------------------------------------------------------+
2.3.2 通过环境变量指定子卡
也可以通过NVIDIA_VISIBLE_DEVICES环境变量来指定使用的子卡，当然该环境变量也支持使用子卡的UUID或者索引号。
2.3.2.1 通过指定UUID
docker run -e NVIDIA_VISIBLE_DEVICES=MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df,MIG-be041b89-b751-5c96-84aa-85315833c669 aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi
执行后，终端输出：
Mon Jul 28 02:04:51 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.15 Driver Version: 570.86.15 CUDA Version: 12.8 |
|-----------------------------------------+------------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+========================+======================|
| 0 NVIDIA H200 Off | 00000000:2A:00.0 Off | On |
| N/A 31C P0 77W / 700W | N/A | N/A Default |
| | | Enabled |
+-----------------------------------------+------------------------+----------------------+
+-----------------------------------------------------------------------------------------+
| MIG devices: |
+------------------+----------------------------------+-----------+-----------------------+
| GPU GI CI MIG | Memory-Usage | Vol| Shared |
| ID ID Dev | BAR1-Usage | SM Unc| CE ENC DEC OFA JPG |
| | | ECC| |
|==================+==================================+===========+=======================|
| 0 5 0 0 | 29MiB / 33280MiB | 32 0 | 2 0 2 0 2 |
| | 0MiB / 65535MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
| 0 7 0 1 | 15MiB / 16384MiB | 16 0 | 1 0 1 0 1 |
| | 0MiB / 32767MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
+-----------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=========================================================================================|
| No running processes found |
+-----------------------------------------------------------------------------------------+
2.3.2.2 通过指定子卡索引
docker run -e NVIDIA_VISIBLE_DEVICES=0:0,0:1 aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi
执行后，终端输出：
Mon Jul 28 02:02:51 2025
+-----------------------------------------------------------------------------------------+
| NVIDIA-SMI 570.86.15 Driver Version: 570.86.15 CUDA Version: 12.8 |
|-----------------------------------------+------------------------+----------------------+
| GPU Name Persistence-M | Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap | Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|=========================================+========================+======================|
| 0 NVIDIA H200 Off | 00000000:2A:00.0 Off | On |
| N/A 31C P0 76W / 700W | N/A | N/A Default |
| | | Enabled |
+-----------------------------------------+------------------------+----------------------+
+-----------------------------------------------------------------------------------------+
| MIG devices: |
+------------------+----------------------------------+-----------+-----------------------+
| GPU GI CI MIG | Memory-Usage | Vol| Shared |
| ID ID Dev | BAR1-Usage | SM Unc| CE ENC DEC OFA JPG |
| | | ECC| |
|==================+==================================+===========+=======================|
| 0 5 0 0 | 29MiB / 33280MiB | 32 0 | 2 0 2 0 2 |
| | 0MiB / 65535MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
| 0 7 0 1 | 15MiB / 16384MiB | 16 0 | 1 0 1 0 1 |
| | 0MiB / 32767MiB | | |
+------------------+----------------------------------+-----------+-----------------------+
+-----------------------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=========================================================================================|
| No running processes found |
+-----------------------------------------------------------------------------------------+
3. 相关问题
3.1 sglang v0.4.9.post4以下版本不支持指定MIG子卡
3.1.1 问题描述
尝试在H200的节点上指定MIG子卡，执行以下命令运行推理服务：
docker run -it --rm \
--name Qwen2.5-7b-fp8 \
--gpus='"device=MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df"' \
-v /share:/share \
-p 9800:8000 \
aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 \
python3 -m sglang.launch_server \
--model-path /share/global/models/Qwen2.5-7B-Instruct/ \
--host 0.0.0.0 \
--port 8000 \
--disable-radix-cache \
--served-model-name Qwen2.5-7b-fp8 \
--tensor-parallel-size 1 \
--quantization fp8 \
--dtype auto
执行后，将会出现报错：
2025-07-28 06:24:08.068 | INFO | vllm.platforms:resolve_current_platform_cls_qualname:244 - Automatically detected platform cuda.
/tmp/pinpointdxbgbm_2
Traceback (most recent call last):
File "<frozen runpy>", line 198, in _run_module_as_main
File "<frozen runpy>", line 88, in _run_code
File "/usr/local/python3/lib/python3.12/site-packages/sglang/launch_server.py", line 16, in <module>
server_args = prepare_server_args(sys.argv[1:])
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/usr/local/python3/lib/python3.12/site-packages/sglang/srt/server_args.py", line 1689, in prepare_server_args
server_args = ServerArgs.from_cli_args(raw_args)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/usr/local/python3/lib/python3.12/site-packages/sglang/srt/server_args.py", line 1632, in from_cli_args
return cls(**{attr: getattr(args, attr) for attr in attrs})
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "<string>", line 165, in __init__
File "/usr/local/python3/lib/python3.12/site-packages/sglang/srt/server_args.py", line 273, in __post_init__
gpu_mem = get_device_memory_capacity(self.device)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/usr/local/python3/lib/python3.12/site-packages/sglang/srt/utils.py", line 1316, in get_device_memory_capacity
gpu_mem = get_nvgpu_memory_capacity()
^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "/usr/local/python3/lib/python3.12/site-packages/sglang/srt/utils.py", line 1263, in get_nvgpu_memory_capacity
raise ValueError("No GPU memory values found.")
ValueError: No GPU memory values found.
3.1.2 问题原因
根据社区检索和源码排查，最终确定问题出在sglang上，相关连接：https://github.com/sgl-project/sglang/pull/8167

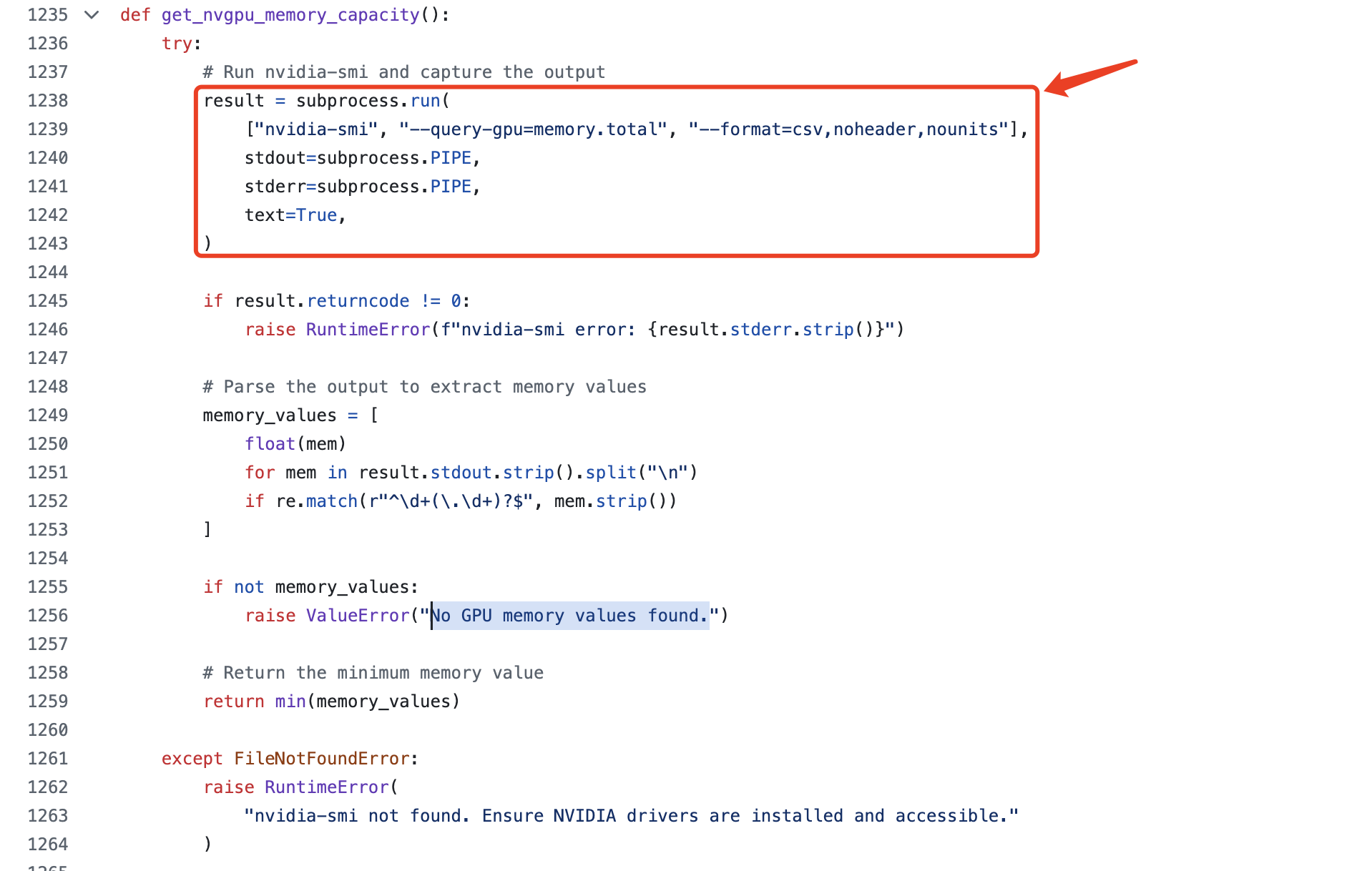

问题原因是sglang当前版本（v0.4.8）默认通过命令行的方式去获取GPU卡的内存信息，然后整卡的内存获取和MIG子卡的内存获取方式会不太一样，具体源码在这里：https://github.com/sgl-project/sglang/blob/7c3a12c0002e33fed1e72f4157e74a64a998f251/python/sglang/srt/utils.py#L1235
这种显存获取方式比较原始，通过命令行子进程的方式获取，感觉这里sglang的源码可以改进下，通过nvml获取靠谱一些。
3.1.3 验证方式
根据源码分析，当前sglang版本也就是通过以下方式获取显存大小：
docker run --rm --gpus '"device=MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df"' aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 nvidia-smi --query-gpu=memory.total --format=csv,noheader,nounits
当直接将该命令在节点上执行后，终端会输出Insufficient Permissions的错误，因此sglang源码中获取显存也就失败了，直接退出执行。
可以通过以下方式验证Github上PR方案的可行性：
- 手动执行进入容器
docker run -it --rm --gpus '"device=MIG-b05c0034-4d0e-5d3c-a25c-e6795d1779df"' aiharbor.msxf.local/test/sglang:0.4.8.post1-cu128 bash - 执行以下
python脚本验证终端输出：python3 -c "
import torch
print('CUDA available:', torch.cuda.is_available())
print('Device count:', torch.cuda.device_count())
if torch.cuda.is_available():
print('Device name:', torch.cuda.get_device_name(0))
print('Memory:', torch.cuda.get_device_properties(0).total_memory / 1024**3, 'GB')
"CUDA available: True
Device count: 1
Device name: NVIDIA H200 MIG 2g.35gb
Memory: 32.5 GB - 也可以通过另外
python脚本验证，该脚本实现方式来源于PR提交内容终端输出：python3 -c "
import torch
print('CUDA available:', torch.cuda.is_available())
print('Device count:', torch.cuda.device_count())
if torch.cuda.is_available():
print('Device name:', torch.cuda.get_device_name(0))
print('Memory:', torch.cuda.mem_get_info()[1] / 1024**3, 'GB')
"CUDA available: True
Device count: 1
Device name: NVIDIA H200 MIG 2g.35gb
Memory: 32.5 GB
3.1.4 解决方案
- 【推荐】升级使用的
sglang版本到v0.4.9.post4或以上解决该问题。 - 考虑切换到
vllm框架，并参考vllm框架解决方案。
